1SNA400239R1500 | ENTRELEC

Terminal block, screw connection, 0.5-6.0 mm², 2 pole, 41 A, 8 kV, black, 1SNA400239R1500

Order No.: 72P4346
MPN:
1SNA400239R1500

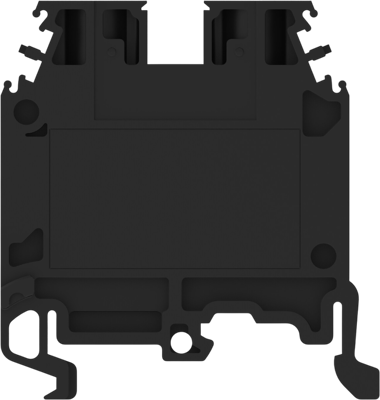

1SNA400239R1500 ENTRELEC Series Terminals Image 1

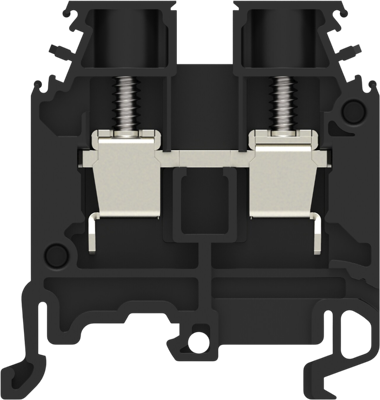

1SNA400239R1500 ENTRELEC Series Terminals Image 2

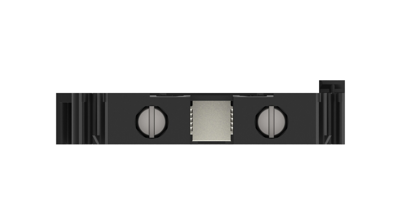

1SNA400239R1500 ENTRELEC Series Terminals Image 3

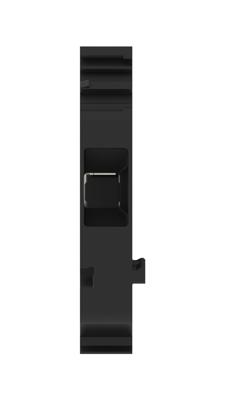

1SNA400239R1500 ENTRELEC Series Terminals Image 4

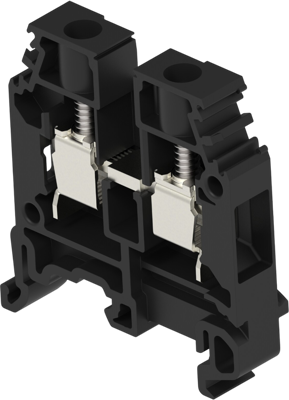

1SNA400239R1500 ENTRELEC Series Terminals Image 5
Image may differ
Unit Price (€ / pc.)
3.5938 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
3.59 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5938 €
10 pcs.
3.3320 €
50 pcs.
3.0940 €
100 pcs.
2.9036 €
*incl. VAT plus shipping costs
Subject to prior sale

DIN rail terminal block, 1SNA400239R1500, ENTRELEC

Screw Clamp Terminal Block, Feed-Through, Black, 8 mm Spacing, 2 Position, Screw Terminal, Signal, DIN Rail, 1000 VAC, 8 AWG, ENTRELEC SNA.

Technical specifications
Connection screw connection
Version terminal block
Cable cross-section 0.5-6.0 mm²
Degree of soiling 3
Pin number 2 pole
Rated Voltage 1000 V
Height 44.5 mm
Colour black
Rated surge voltage 8 kV
AWG cross-section AWG 8
Rated current 41 A
Width 8 mm
Length 40.5 mm
Logistics
Country of origin FR
Customs tariff number 85366990
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
