1SNA290213R0400 | ENTRELEC
Terminal block, screw connection, 0.12-2.5 mm², 24 A, 8 kV, blue, 1SNA290213R0400
Order No.: 72P4313
MPN:
1SNA290213R0400
Unit Price (€ / pc.)
2.6299 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
2.63 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6299 €
10 pcs.
2.4395 €
25 pcs.
2.2848 €
50 pcs.
2.0706 €
*incl. VAT plus shipping costs
Subject to prior sale

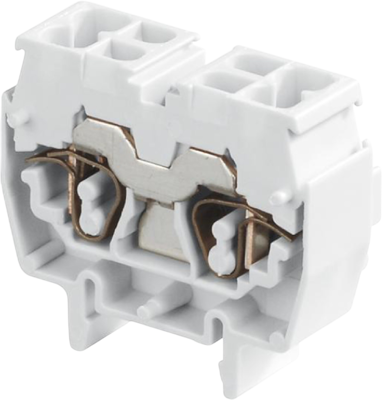

DIN rail terminal block, 1SNA290213R0400, ENTRELEC
Save space with compact angled terminal blocks, - Easy mounting on DIN rail TH15, - Easy to access thanks to the front wiring entry, - Clamping contact pressure non dependent on the operator and automatic creeping compensation.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 800 V | |
| Height | 33 mm | |
| Colour | blue | |
| Degree of soiling | 3 | |
| Rated current | 24 A | |
| Cable cross-section | 0.12-2.5 mm² | |
| Version | terminal block | |
| Connection | screw connection | |
| AWG cross-section | AWG 12 | |
| Width | 10 mm | |
| Rated surge voltage | 8 kV | |
| Length | 24.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
