1SNA115659R0700 | ENTRELEC
Terminal block, screw connection, 0.5-4.0 mm², 2 pole, 6.3 A, 8 kV, gray, 1SNA115659R0700
Order No.: 72P4337
MPN:
1SNA115659R0700
Unit Price (€ / pc.)
10.2340 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
10.23 € *
Price list
Quantity
Price per unit*
1 pcs.
10.2340 €
5 pcs.
9.7104 €
10 pcs.
9.0797 €
25 pcs.
8.2824 €
*incl. VAT plus shipping costs
Subject to prior sale

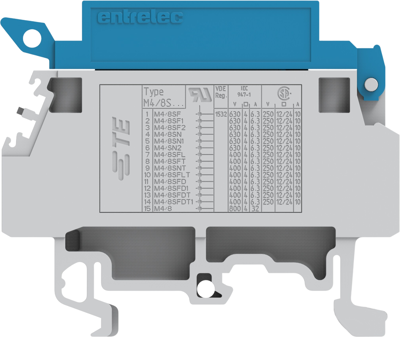

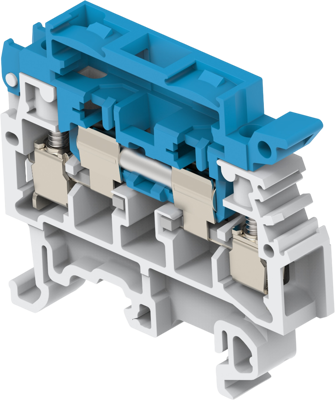

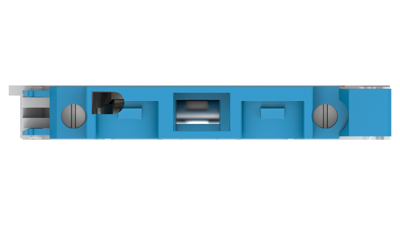

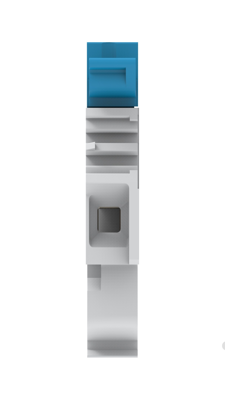

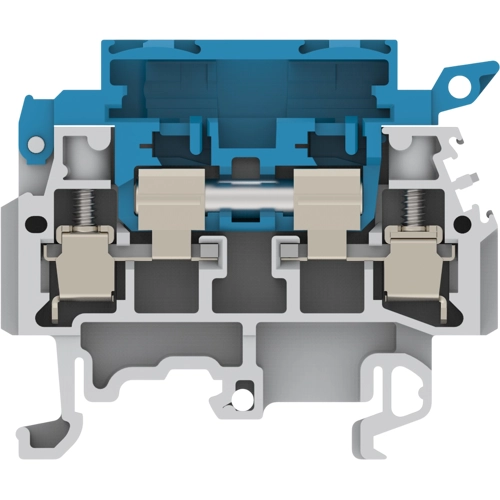

DIN rail terminal block, 1SNA115659R0700, ENTRELEC
Screw Clamp Terminal Block, Disconnect, Gray, 8 mm Spacing, 2 Position, Screw Terminal, Signal, DIN Rail, 630 VAC, 12 AWG, ENTRELEC SNA.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 630 V | |
| Connection | screw connection | |
| Rated current | 6.3 A | |
| Version | terminal block | |
| Pin number | 2 pole | |
| Width | 8 mm | |
| Height | 56.5 mm | |
| AWG cross-section | AWG 12 | |
| Degree of soiling | 3 | |
| Rated surge voltage | 8 kV | |
| Colour | gray | |
| Length | 41 mm | |
| Cable cross-section | 0.5-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
