1SNA115126R0100 | ENTRELEC

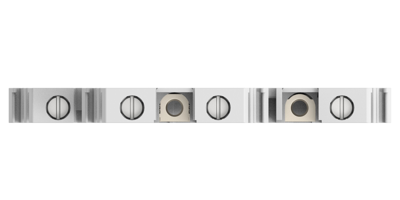

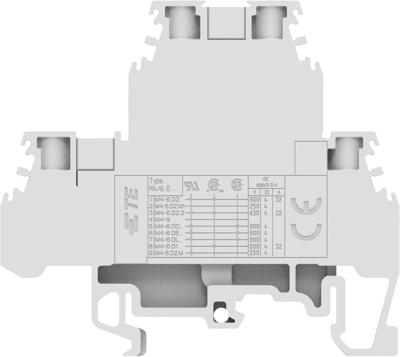

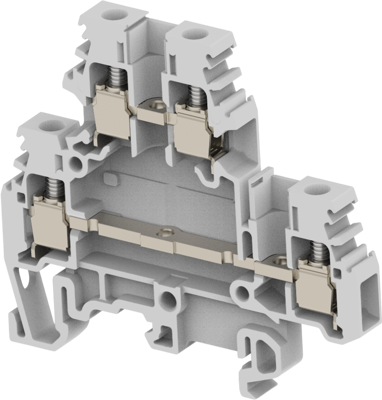

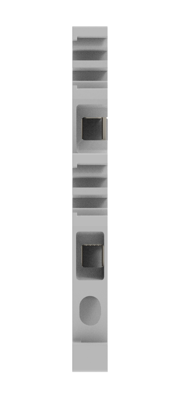

Terminal block, screw connection, 4.0 mm², 2 pole, 32 A, 8 kV, gray, 1SNA115126R0100
Order No.: 72P4325
MPN:
1SNA115126R0100
Unit Price (€ / pc.)
6.3665 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
6.37 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3665 €
10 pcs.
5.9262 €
50 pcs.
5.5573 €
100 pcs.
5.2241 €
*incl. VAT plus shipping costs
Subject to prior sale
DIN rail terminal block, 1SNA115126R0100, ENTRELEC
Screw Clamp Terminal Block, Feed-Through, Gray, 6 mm Spacing, 2 Position, Screw Terminal, Signal, DIN Rail, 800 VAC, 12 AWG, ENTRELEC SNA.
Technical specifications
| Connection | screw connection | |
| Version | terminal block | |
| Cable cross-section | 4.0 mm² | |
| Degree of soiling | 3 | |
| Pin number | 2 pole | |
| Rated Voltage | 800 V | |
| Height | 65.5 mm | |
| Colour | gray | |
| Rated surge voltage | 8 kV | |
| AWG cross-section | AWG 12 | |
| Rated current | 32 A | |
| Width | 6 mm | |
| Length | 52 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
