9294310181 | ebm-papst
DC axial fan, 24 V, 119 x 119 x 38 mm, 237 m³/h, 59 dB, ball bearing, ebm-papst 9294310181
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
72.2449 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
72.24 € *
Price list
Quantity
Price per unit*
1 pcs.
72.2449 €
2 pcs.
70.2457 €
5 pcs.
68.3417 €
36 pcs.
63.2247 €
*incl. VAT plus shipping costs
Subject to prior sale

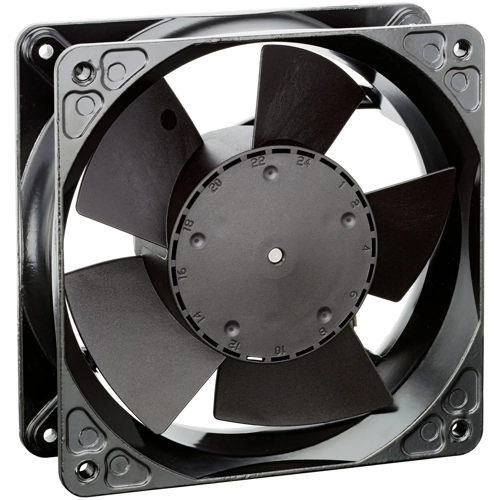

DC Axial Fan, 9294310181, ebm-papst
38 mm flat axial fan for DC operation with very high power/performance. Driven by an electronically commutated external rotor motor. Electronic commutation system is integrated into the motor hub. Air flow and noise level can be controlled by varying the supply voltage range.
Features
- Electronically protected against blocking and overloading
- Electronical protection against reverse polarity
- Extremely low EMI
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 24 V | |
| Width | 119 mm | |
| Height | 119 mm | |
| Depth | 38 mm | |
| Volume flow | 237 m³/h | |
| Sound pressure level | 59 db | |
| speed | 4400 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 11 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
