ASX00017 | Arduino
Arduino Board MKR GPS Shield ASX00017
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
42.6615 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
42.66 € *
Price list
Quantity
Price per unit*
1 pcs.
42.6615 €
10 pcs.
41.7690 €
50 pcs.
33.2010 €
*incl. VAT plus shipping costs
Subject to prior sale

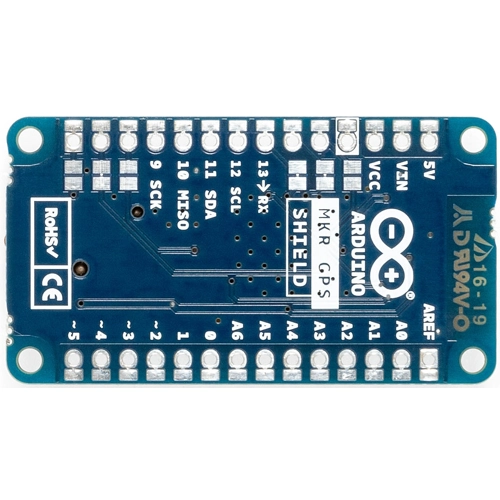

Arduino Board MKR GPS Shield, ASX00017, Arduino

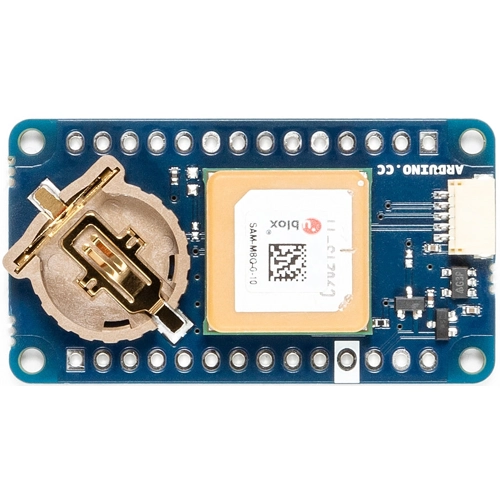

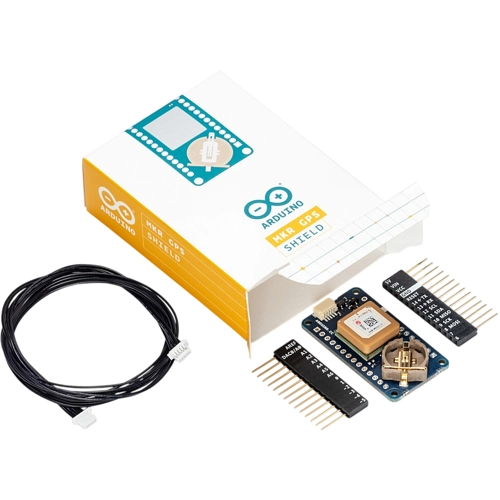

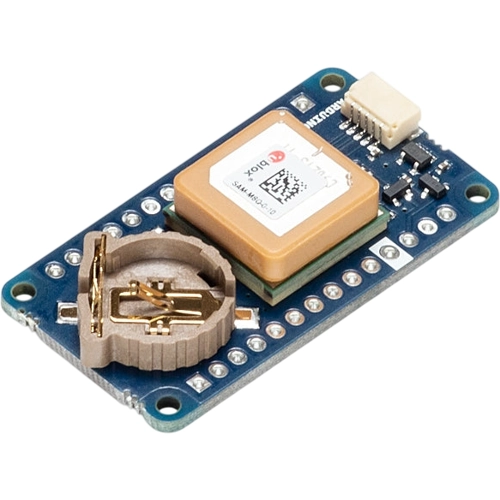

The MKR GPS Shield is based on the u-blox SAM-M8Q GNSS (Global Navigation Satellite System) module. It is meant to be used on top of boards in the MKR format, but thanks to its Eslov connector, it is also possible to hook it up to any board having that kind of connector available using a cable. This module is designed to operate with different positioning services concurrently. It receives and processes the signals from GPS, GLONASS, and Galileo. It interfaces with Arduino boards either through a serial interface, when used with headers and put on top of a MKR board, or through an I2C interface and a dedicated ESLOV cable supplied as bundle.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 3.3 V | |
| Product type | development board | |
| Suitable for | MKR board |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84733080 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Electrical equipment take-back |  |
