14910F0GJSX10504KA | Vishay
Cermet precision potentiometer, 500 kΩ, 1 W, linear, solder pin, 14910F0GJSX10504KA
Unit Price (€ / pc.)
13.0781 € *
Available: 38 pcs.
Leadtime: On Request **
Total Price:
13.08 € *
Price list
Quantity
Price per unit*
1 pcs.
13.0781 €
10 pcs.
9.8532 €
25 pcs.
8.8298 €
50 pcs.
8.1515 €
150 pcs.
7.0329 €
*incl. VAT plus shipping costs
**Subject to prior sale

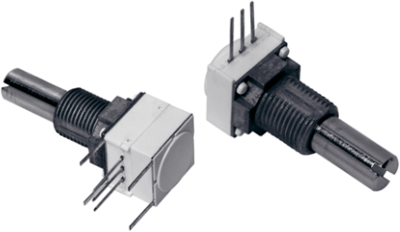

Cermet potentiometer, 14910F0GJSX10504KA, Vishay
Characterized by a low temperature coefficient, the cermet element maintains its performance consistently across different temperatures.

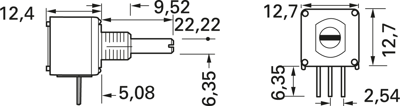

Technical specifications
| Track Taper | linear | |
| Assembly | angled | |
| Width | 12.7 mm | |
| Mechanic rotary range | 300 ° | |
| Power | 1 W | |
| Length | 12.7 mm | |
| Contact distance | RM 2.54 | |
| axle diameter | 6.35 mm | |
| Version | cermet precision potentiometer | |
| min. operating temperature | -40 °C | |
| Connection | solder pin | |
| max. operating temperature | 150 °C | |
| Rotary range, electrical | 270 ° | |
| ohmic resistance | 500 kΩ |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85334010 |
| Original Packaging | Bar with 25 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
