B72220S2321K101 | TDK (EPCOS)
Varistor, radial, VV 510 V, 10000 A, 420 V (DC), 320 V (AC), ±10 %, 1 VA (AC), 273 J, B72220S2321K101
Unit Price (€ / pc.)
0.8806 € *
Standard delivery time from the manufacturer is: 20 Weeks
Metal oxide varistors (VDRs), type TDK/Epcos E2 B722..K101.
Advance D series for demanding pulse energy applications
Technical specifications
| Filter | Property | Value |
|---|---|---|

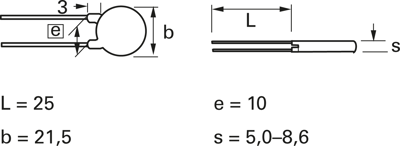

| Design | radial | |
| Varistor Voltage Type | 510 V | |
| max. Surge current, transient (8/20 µs) | 10000 A | |
| Rated voltage (DC) | 420 V | |
| Rated voltage (AC) | 320 V | |
| Tolerance | ±10 % | |
| Power dissipation | 1 W | |
| Energy absorption | 273 J | |
| Grid | 10 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Standard number | UL, CSA, VDE, CECC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Original Packaging | Bulk with 250 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
