B72205S0421K101 | TDK (EPCOS)
Varistor, radial, VV 680 V, 400 A, 560 V (DC), 420 V (AC), ±10 %, 0.1 VA (AC), 14 J, B72205S0421K101
Unit Price (€ / pc.)
0.7854 € *
Available: 2,018 pcs.
Leadtime: On Request **
Total Price:
0.79 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7854 €
10 pcs.
0.4879 €
50 pcs.
0.3570 €
250 pcs.
0.2939 €
1000 pcs.
0.2523 €
*incl. VAT plus shipping costs
**Subject to prior sale

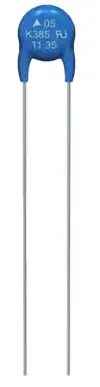

Metal oxide varistors (VDRs), type TDK/Epcos S05 B72205..K101.

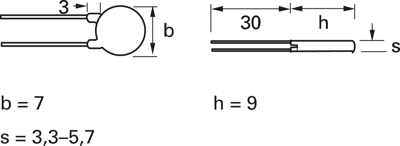

Disk version
Technical specifications
| Design | radial | |
| Varistor Voltage Type | 680 V | |
| max. Surge current, transient (8/20 µs) | 400 A | |
| Rated voltage (DC) | 560 V | |
| Rated voltage (AC) | 420 V | |
| Tolerance | ±10 % | |
| Power dissipation | 0.1 W | |
| Energy absorption | 14 J | |
| Grid | 5 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Standard number | UL, CSA, SEV, VDE, CECC, CQC, IEC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85332100 |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
