Passive filter, 3-phase, 400 V, 150 A for frequency converter, VW3A46131
Unit Price (€ / pc.)
10,026.0118 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
10,026.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
10,026.0118 €

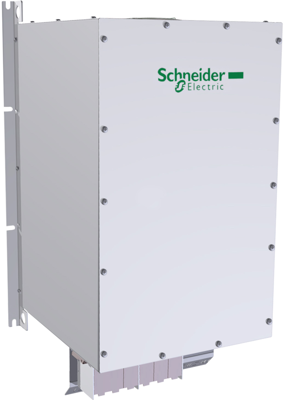

Passive filter, VW3A46131, Schneider Electric
This passive filter is an option for variable speed drives of Altivar range. Its rated current is equal to 150A. It is used as an input filter in order to obtain total harmonic distortion of less than 10% or 5%. Its protection index is IP20. It weighs 126kg and its dimensions are, 418mm wide, 767.6mm high, 400mm deep. It is designed to be used for drives in the first environment (restricted distribution, domestic applications).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | passive filter | |
| Suitable for | frequency converter | |
| Number of phases | 3 | |
| Rated voltage | 400 V | |
| Output current | 150 A | |
| Width | 370 mm | |
| Height | 767.6 mm | |
| Depth | 400 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85480090 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
