VW3A46127 | Schneider Electric
Passive filter, 3-phase, 400 V, 60 A for frequency converter, VW3A46127
Unit Price (€ / pc.)
5,392.7587 € *
Standard delivery time from the manufacturer is: 4 Weeks

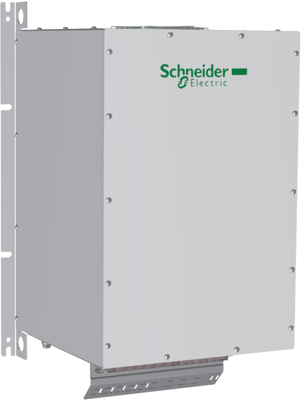

Passive filter, VW3A46127, Schneider Electric
This passive filter is an option for variable speed drives of Altivar range. Its rated current is equal to 60A. It is used as an input filter in order to obtain total harmonic distortion of less than 10% or 5%. Its protection index is IP20. It weighs 76kg and its dimensions are, 378mm wide, 623.6mm high, 333mm deep. It is designed to be used for drives in the first environment (restricted distribution, domestic applications).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 333 mm | |
| Height | 623.6 mm | |
| Suitable for | frequency converter | |
| Number of phases | 3 | |
| Version | passive filter | |
| Width | 330 mm | |
| Output current | 60 A | |
| Rated voltage | 400 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85480090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
