VW3A46126 | Schneider Electric
Passive filter, 3-phase, 400 V, 44 A for frequency converter, VW3A46126
Unit Price (€ / pc.)
4,723.4194 € *
Standard delivery time from the manufacturer is: 4 Weeks

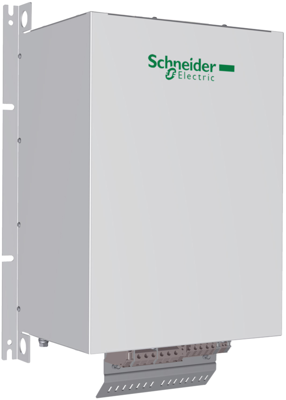

Passive filter, VW3A46126, Schneider Electric
This passive filter is an option for variable speed drives of Altivar range. Its rated current is equal to 44A. It is used as an input filter in order to obtain total harmonic distortion of less than 10% or 5%. Its protection index is IP20. It weighs 58kg and its dimensions are, 378mm wide, 594mm high, 242mm deep.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | passive filter | |
| Suitable for | frequency converter | |
| Number of phases | 3 | |
| Rated voltage | 400 V | |
| Output current | 44 A | |
| Width | 330 mm | |
| Height | 594 mm | |
| Depth | 242 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85480090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
