VW3A46119 | Schneider Electric
Passive filter, 3-phase, 400 V, 450 A for frequency converter, VW3A46119
Unit Price (€ / pc.)
15,536.8185 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
15,536.82 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
15,536.8185 €

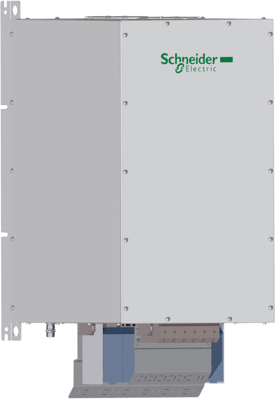

Passive filter, VW3A46119, Schneider Electric
This passive filter is an option for variable speed drives of Altivar range. Its rated current is equal to 450A. It is used as an input filter in order to obtain total harmonic distortion of less than 10% or 5%. Its protection index is IP20. It weighs 205kg and its dimensions are, 468mm wide, 900.06mm high, 510mm deep. It is designed to be used for drives in the first environment (restricted distribution, domestic applications).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 510 mm | |
| Number of phases | 3 | |
| Rated voltage | 400 V | |
| Width | 420 mm | |
| Suitable for | frequency converter | |
| Height | 900 mm | |
| Output current | 450 A | |
| Version | passive filter |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85480090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
