ATV320U04N4W | Schneider Electric
Frequency converter, 3-phase, 0.37 kW, 400 V, 1.5 A, ATV320U04N4W
Unit Price (€ / pc.)
688.2008 € *
Standard delivery time from the manufacturer is: 1 Week

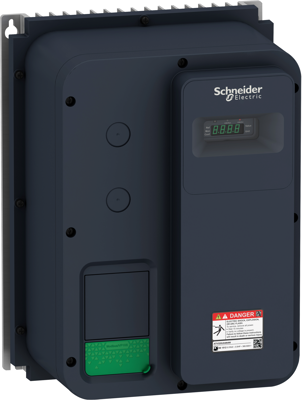

Frequency converter, ATV320U04N4W, Schneider Electric
Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). This ATV320 drive can feed 3-phase synchronous and asynchronous motors. It works at a rated power up to 0.37kW, and a rated voltage from 380V to 500V. Altivar high IP offers washable drives for harsh environments, if users want to clean the dust and chemical pollution outside of drives.
It is delivered without fan, with embedded EMC C2 filter and it provides IP66 protection. It integrates as standard Modbus and CANopen communication protocols with access via the RJ45 connector on the front of the drive. It weighs 5.9kg. The drive software includes 5 safety functions that help machines meet safety requirements.
Features
- Safety function
- Fanless
- For simple and advanced machines
- Advanced Motor control
- Less downtime
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 0.37 kW | |
| Depth | 200 mm | |
| Rated voltage | 400 V | |
| Number of phases | 3 | |
| Height | 340 mm | |
| Output current | 1.5 A | |
| Version | frequency converter | |
| Width | 250 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ID |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
