NSYCVF85M115PF | Schneider Electric
Fan, 115 V, 150 x 170 x 62 mm, 85 m³/h, 49 dB, ball bearing, Schneider Electric NSYCVF85M115PF
Unit Price (€ / pc.)
106.9691 € *
Standard delivery time from the manufacturer is: 1 Week

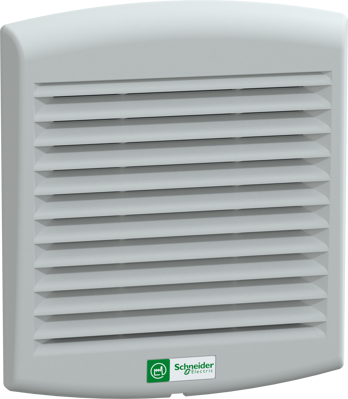

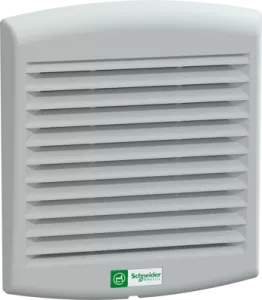

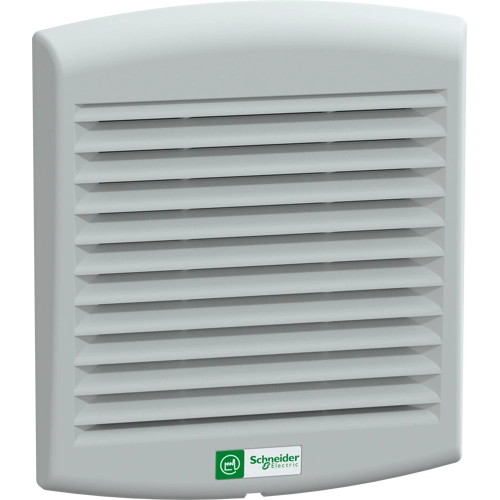

Fan, NSYCVF85M115PF, Schneider Electric
This product is a fan designed to provide reliable and efficient cooling. It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color. The fan has a ball bearing type and a maximum pressure of 50 Pa. It has a power range of 16 W 50 Hz and 15 W 60 Hz, and a free flow rate of 79 m3/h at 50 Hz and 92 m3/h at 60 Hz. It can be used in ambient air temperatures ranging from -20 to 60°C. It has a Faston connector and comes with a filter, an outlet grille, two protective grilles on the front and rear surfaces, and a power cord. It has an IP54 degree of protection and a noise level of 46-49 dB. The cut-out dimensions of the fan are 125 x 125 mm. This fan also comes with an anti-insect filter included..
Features
- Reliable and efficient cooling with a power range
- Made of injected thermoplastic material for a reliable and efficient cooling system compliant to UL 94 V-0
- Comes with an anti-insect filter for added convenience
- Provides a free flow rate of 79 m3/h at 50 Hz and 92 m3/h at 60 Hz
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 115 V | |
| Width | 150 mm | |
| Height | 170 mm | |
| Depth | 62 mm | |
| Volume flow | 85 m³/h | |
| Sound pressure level | 49 db | |
| Type of bearing | ball bearing | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
