NSYCVF85M230PF | Schneider Electric
ClimaSys forced vent. IP54, 85m3/h, 230V, with outlet grille and filter G2
Unit Price (€ / pc.)
101.1024 € *
Available: 5 pcs.
Leadtime: On Request **

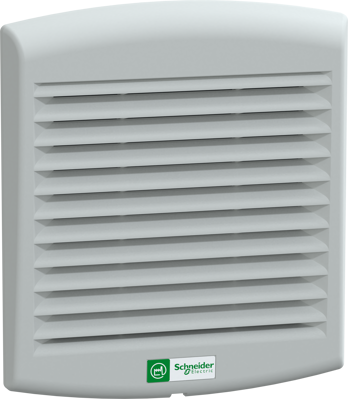

ClimaSys fan, NSYCVF85M230PF, Schneider Electric
ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 17 W 50 Hz, 15 W 60 Hz. Free flow rate with standard filter of 85 m3/h at 50 Hz and 98 m3/h at 60 Hz. 170 x 150 x 62 mm. Cut-out dimensions of 125 x 125 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.
Technical specifications
| Width | 125 mm | |
| Height | 125 mm | |
| Type of bearing | ball bearing | |
| Rated voltage | 230 V | |
| Sound pressure level | 49 db | |
| Degree of protection (IP) | IP54 | |
| Volume flow | 85 m³/h |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
