LC1D18BD | Schneider Electric
Power contactor, 3 pole, 18 A, 690 V, 3 Form A (N/O), coil 24 VDC, screw connection, LC1D18BD
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
101.6617 € *
Available: 3 pcs.
Available in 3 Days: 438 pcs. - if ordered today
Total Price:
101.66 € *
Price list
Quantity
Price per unit*
1 pcs.
101.6617 €
3 pcs.
98.9128 €
*incl. VAT plus shipping costs
Subject to prior sale

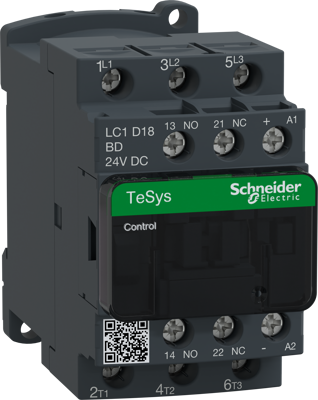

TeSys D contactor, LC1D18BD, Schneider Electric
TeSys D contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3 (7.5kW@400V). It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power contactor | |
| Latching switching function | 3 Form A (N/O) | |
| Pin number | 3 pole | |
| Rated current | 18 A | |
| Rated Voltage | 690 V | |
| rated voltage (AC) | 440 V | |
| Control Voltage | 24 VDC | |
| Connection | screw connection | |
| Assembly | DIN rail/screw | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Sustainable | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
