LC1D25P7 | Schneider Electric
Power contactor, 3 pole, 25 A, 690 V, 3 Form A (N/O), coil 230 VAC, screw connection, LC1D25P7
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
83.4428 € *
Available in 3 Days: 320 pcs. - if ordered today
Total Price:
83.44 € *
Price list
Quantity
Price per unit*
1 pcs.
83.4428 €
3 pcs.
81.1937 €
*incl. VAT plus shipping costs
Subject to prior sale

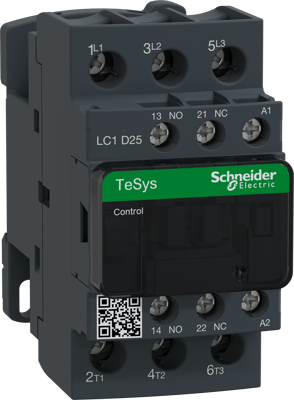

TeSys D contactor, LC1D25P7, Schneider Electric
TeSys D contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3 (11kW@400V). It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power contactor | |
| Latching switching function | 3 Form A (N/O) | |
| Pin number | 3 pole | |
| Rated current | 25 A | |
| Rated Voltage | 690 V | |
| rated voltage (AC) | 440 V | |
| Control Voltage | 230 VAC | |
| Connection | screw connection | |
| Assembly | DIN rail/screw | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
