3240668 | Phoenix Contact
Insulated twin wire end ferrule, 0.75 mm², 15 mm/8 mm long, NF C 63-023, blue, 3240668
Order No.: 60P6543
EAN: 4046356629973
MPN:
3240668
AI-TWIN 2X 0,75- 8 BU
Unit Price (€ / pc.)
0.0702 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

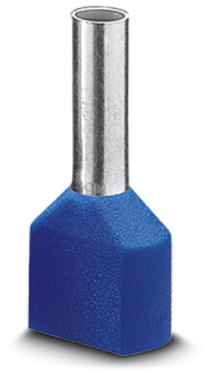

Ferrule, 3240668, Phoenix Contact
Ferrule, for two 0.75 mm² conductors, sleeve length: 8 mm, with plastic collar, galvanically tin-plated, color: blue, color range according to NF C 63-023, CSA-certified. This special ferrule allows chain bridges to be set up with ease.
Features
- The TWIN ferrules provide a practical way of crimping two conductors in one ferrule
- Different versions of the individual TWIN ferrules can be selected for specific applications
Technical specifications
| Colour | blue | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 15 mm | |
| Cable cross-section | 0.75 mm² | |
| max. operating temperature | 105 °C | |
| Standard number | NF C 63-023 | |
| Pin lenght | 8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
