3200810 | Phoenix Contact
Insulated twin wire end ferrule, 1.0 mm², 15 mm/8 mm long, red, 3200810
Order No.: 60P6546
EAN: 4017918094362
MPN:
3200810
AI-TWIN 2X 1 - 8 RD
Unit Price (€ / pc.)
0.0833 € *
Available: 900 pcs.
Leadtime: 2 Weeks **
Total Price:
8.33 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0833 €
500 pcs.
0.0750 €
1000 pcs.
0.0655 €
*incl. VAT plus shipping costs
**Subject to prior sale

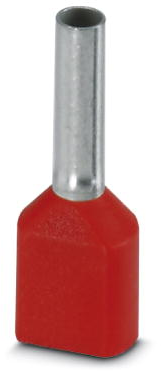

Ferrule, 3200810, Phoenix Contact
Ferrule, sleeve length: 8 mm, length: 15 mm, color: red. This special ferrule allows chain bridges to be set up with ease.
Features
- The TWIN ferrules provide a practical way of crimping two conductors in one ferrule
- Different versions of the individual TWIN ferrules can be selected for specific applications
Technical specifications
| Colour | red | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 15 mm | |
| Cable cross-section | 1.0 mm² | |
| max. operating temperature | 105 °C | |
| Pin lenght | 8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
