3201026 | Phoenix Contact
Insulated twin wire end ferrule, 10 mm², 26 mm/14 mm long, DIN 46228/4, red, 3201026
Order No.: 60P6560
EAN: 4017918094577
MPN:
3201026
AI-TWIN 2X10 -14 RD
Unit Price (€ / pc.)
0.3808 € *
Available: 0 pcs.
Leadtime: 19 Weeks **

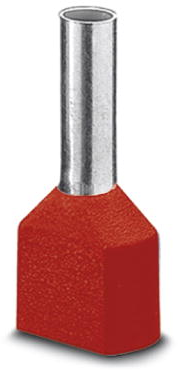

Ferrule, 3201026, Phoenix Contact
Ferrule, sleeve length: 14 mm, length: 26 mm, color: red. This special ferrule allows chain bridges to be set up with ease.
Features
- The TWIN ferrules provide a practical way of crimping two conductors in one ferrule
- Different versions of the individual TWIN ferrules can be selected for specific applications
Technical specifications
| Colour | red | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 26 mm | |
| Cable cross-section | 10 mm² | |
| max. operating temperature | 105 °C | |
| Standard number | DIN 46228/4 | |
| Pin lenght | 14 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
