3201000 | Phoenix Contact
Insulated twin wire end ferrule, 4.0 mm², 23 mm/12 mm long, DIN 46228/4, gray, 3201000
Order No.: 60P6555
EAN: 4017918094553
MPN:
3201000
AI-TWIN 2X 4 -12 GY
Unit Price (€ / pc.)
0.2618 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

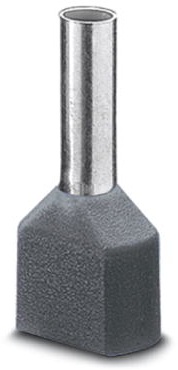

Ferrule, 3201000, Phoenix Contact
Ferrule, sleeve length: 12 mm, length: 23 mm, color: gray. This special ferrule allows chain bridges to be set up with ease.
Features
- The TWIN ferrules provide a practical way of crimping two conductors in one ferrule
- Different versions of the individual TWIN ferrules can be selected for specific applications
Technical specifications
| Colour | gray | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 23 mm | |
| Cable cross-section | 4.0 mm² | |
| max. operating temperature | 105 °C | |
| Standard number | DIN 46228/4 | |
| Pin lenght | 12 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
