3201178 | Phoenix Contact
Insulated wire end ferrule, 50 mm², 36 mm/20 mm long, DIN 46228-4, olive, 3201178
Unit Price (€ / pc.)
0.5474 € *
Available in 5 Days: 3,950 pcs. - if ordered today

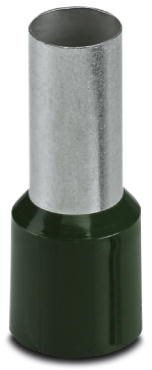

Ferrule, 3201178, Phoenix Contact
Ferrule, sleeve length: 20 mm, length: 36 mm, color: olive. The ferrule's plastic sleeve is made from soft tin-plated electrolytic copper.
Features
- The AI 0,25.. ferrule can also be used to process 0.14 mm² conductors
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 50 mm² | |
| Isolated | Yes | |
| Colour | olive | |
| Length | 36 mm | |
| Pin lenght | 20 mm | |
| Standard number | DIN 46228-4 | |
| Contact material | copper | |
| Material Insulation | polypropylene | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
