1200281 | Phoenix Contact
Insulated twin wire end ferrule, 2.5 mm², 24.5 mm/16 mm long, DIN 46228/4, blue, 1200281
Order No.: 60P6554
EAN: 4055626351414
MPN:
1200281
AI-TWIN 2X 2,5 -16 BU
Unit Price (€ / pc.)
0.1416 € *
Available: 300 pcs.
Leadtime: 2 Weeks **

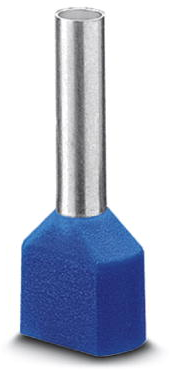

Ferrule, 1200281, Phoenix Contact
Ferrule, sleeve length: 16 mm, length: 24.5 mm, color: blue. This special ferrule allows chain bridges to be set up with ease.
Features
- The TWIN ferrules provide a practical way of crimping two conductors in one ferrule
- Different versions of the individual TWIN ferrules can be selected for specific applications
Technical specifications
| Colour | blue | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 24.5 mm | |
| Cable cross-section | 2.5 mm² | |
| max. operating temperature | 105 °C | |
| Standard number | DIN 46228/4 | |
| Pin lenght | 16 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
