3200975 | Phoenix Contact
Insulated twin wire end ferrule, 0.75 mm², 17 mm/10 mm long, DIN 46228-4, gray, 3200975
Unit Price (€ / pc.)
0.0952 € *
Available: 150 pcs.
Available in 5 Days: 280,100 pcs. - if ordered today
Total Price:
4.76 € *
Price list
Quantity
Price per unit*
50 pcs.
0.0952 €
100 pcs.
0.0845 €
500 pcs.
0.0750 €
*incl. VAT plus shipping costs
Subject to prior sale

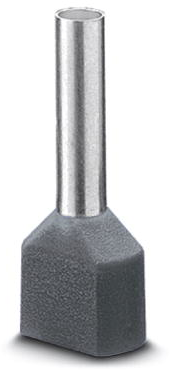

Ferrule, 3200975, Phoenix Contact
Ferrule, sleeve length: 10 mm, length: 17 mm, color: gray. This special ferrule allows chain bridges to be set up with ease.
Features
- The TWIN ferrules provide a practical way of crimping two conductors in one ferrule
- Different versions of the individual TWIN ferrules can be selected for specific applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.75 mm² | |
| Isolated | Yes | |
| Colour | gray | |
| Length | 17 mm | |
| Pin lenght | 10 mm | |
| Standard number | DIN 46228-4 | |
| Contact material | copper | |
| Material Insulation | polypropylene | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
