CCMR02.5TXP | Littelfuse

Microfuse 10.3 x 38.1 mm, 2.5 A, T, 250 V (DC), 600 V (AC), 200 kA breaking capacity, CCMR02.5TXP

Order No.: 42G8807
EAN: 4099889087604
MPN:
CCMR02.5TXP
Series: CCMR
CCMR02.5TXP Littelfuse Micro Fuses

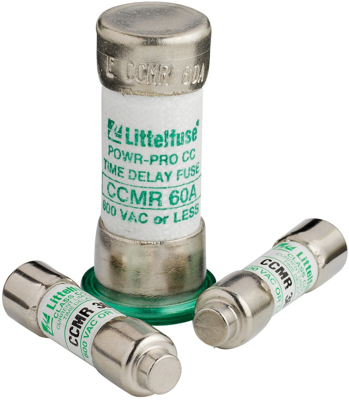

Image may differ
Unit Price (€ / pc.)
35.8547 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
358.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
35.8547 €

Micro fuse, CCMR02.5TXP,LITTELFUSE

The CCMR02.5TXP is a time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.

Features

  • Cartridge form
  • Extremely current-limiting
  • High breaking capacity

Applications

  • Motor and motor branch circuit protection
Technical specifications
Length 38.1 mm
diameter 10.3 mm
Rated current 2.5 A
Breaking capacity 200 kA
Rated voltage (DC) 250 V
Design 10.3 x 38.1 mm
Version microfuse
Enclosure ceramic tube
Tripping characteristics T
Rated voltage (AC) 600 V
Logistics
Customs tariff number 85361010
Original Packaging Carton with 10 pieces
Country of origin MX
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
