CCMR010.TXP | Littelfuse
Microfuse 10.3 x 38.1 mm, 10 A, T, 250 V (DC), 600 V (AC), 200 kA breaking capacity, CCMR010.TXP
Unit Price (€ / pc.)
40.8765 € *
Standard delivery time from the manufacturer is: 7 Weeks

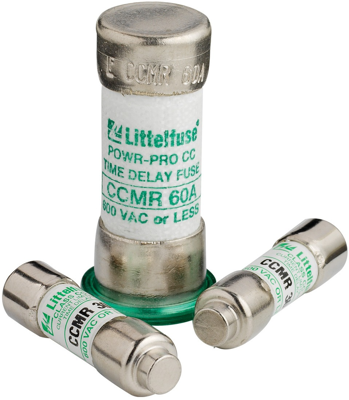

Micro fuse, CCMR010.TXP,LITTELFUSE
The CCMR010.TXP is a time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Cartridge form
- Extremely current-limiting
- High breaking capacity
Applications
- Motor and motor branch circuit protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | microfuse | |
| Design | 10.3 x 38.1 mm | |
| Enclosure | ceramic tube | |
| Rated current | 10 A | |
| Tripping characteristics | T | |
| Rated voltage (DC) | 250 V | |
| Rated voltage (AC) | 600 V | |
| Breaking capacity | 200 kA | |
| Length | 38.1 mm | |
| diameter | 10.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Original Packaging | Carton with 10 pieces |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
