0313004.HXP | Littelfuse
Microfuse 6.3 x 32 mm, 4 A, T, 250 V (AC), 10 kA breaking capacity, 0313004.HXP
Unit Price (€ / pc.)
0.5593 € *
Available in 4 Days: 100 pcs. - if ordered today

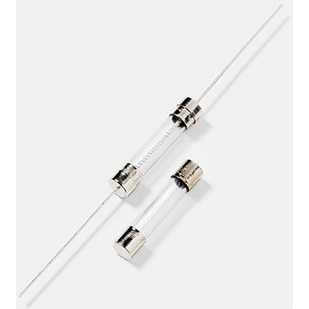

Fuse, 0313004.HXP, Littelfuse
The 3AG Slo-Blo fuse solves a broad range of application requirements while offering reliable performance and costeffective circuit protection.
Features
- In accordance with UL Standard 248-14
- Available in cartridge and axial lead format and with various forming dimensions
- RoHS compliant and Lead-free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 6.35 mm | |
| Rated voltage (AC) | 250 V | |
| Length | 31.75 mm | |
| Tripping characteristics | T | |
| Breaking capacity | 10 kA | |
| Design | 6.3 x 32 mm | |
| Enclosure | glass tube | |
| Version | microfuse | |
| Rated current | 4 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bulk with 100 pieces |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
