0251004.HAT1L | Littelfuse
Microfuses 7.11 x 2.8 mm, 4 A, FF, 125 V (DC), 125 V (AC), 300 A breaking capacity, 0251004.HAT1L
Unit Price (€ / pc.)
1.0710 € *
Available: 192 pcs.
Available in 4 Days: 100 pcs.
Leadtime: 1 Week **
Total Price:
10.71 € *
Price list
Quantity
Price per unit*
10 pcs.
1.0710 €
100 pcs.
0.8568 €
200 pcs.
0.8092 €
1000 pcs.
0.6783 €
2500 pcs.
0.6188 €
*incl. VAT plus shipping costs
**Subject to prior sale

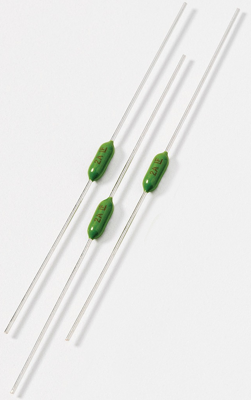

Fuse, 0251004.HAT1L, Littelfuse
The 0251004.HAT1L is a very fast-acting fuse is designed to meet an extensive array of performance characteristics in a space-saving subminiature package.
Features
- Very fast-acting
- Small size
- Wide current rating
- Halogen-free available
- Wide operating temperature range
- Low temperature re-rating
Technical specifications
| Version | microfuses | |
| Tripping characteristics | FF | |
| Breaking capacity | 300 A | |
| Design | 7.11 x 2.8 mm | |
| diameter | 2.8 mm | |
| Enclosure | ceramic tube | |
| Length | 7.11 mm | |
| Rated voltage (AC) | 125 V | |
| Rated voltage (DC) | 125 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85361010 |
| Original Packaging | Ammopack with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
