0216002.TXP | Littelfuse

Microfuse 5 x 20 mm, 2 A, F, 250 V (AC), 1.5 kA breaking capacity, 0216002.TXP

Order No.: 42G1670
EAN: 4099889084504
MPN:
0216002.TXP
Series: 216
0216002.TXP Littelfuse Micro Fuses

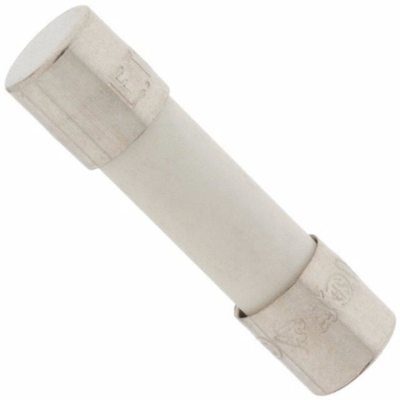

Image may differ
Unit Price (€ / pc.)
0.4522 € *
Available: 300 pcs.
Available in 4 Days: 1,000 pcs. - if ordered today
Total Price:
0.45 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4522 €
10 pcs.
0.3213 €
100 pcs.
0.2808 €
500 pcs.
0.2440 €
1000 pcs.
0.2213 €
*incl. VAT plus shipping costs
Subject to prior sale

Micro fuse, 0216002.TXP,LITTELFUSE

The 0216002.TXP is a fast-acting fuse with that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.

Features

  • Material ceramic body
  • High breaking capacity
  • RoHS-compliant and lead-free

Applications

  • Supplementary protection
  • Utilization equipment
  • Internal circuits
Technical specifications
Filter Property Value
Rated current 2 A
Tripping characteristics F
diameter 5 mm
Version microfuse
Enclosure ceramic tube
Rated voltage (AC) 250 V
Breaking capacity 1.5 kA
Design 5 x 20 mm
Length 20 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85361010
Original Packaging Carton with 10 pieces
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
