09380062711 | Harting

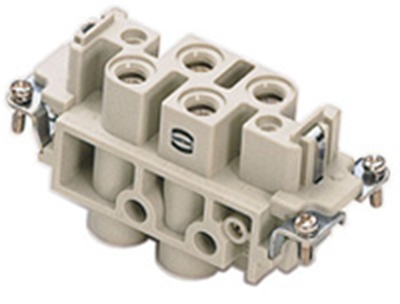

Name: Socket contact insert, 16B, 4 pole, equipped, screw connection, with PE contact, 09380062711
Brand: Harting
SKU: 42F1972
Price: 55.53 EUR
Availability: InStock

Socket contact insert, 16B, 4 pole, equipped, screw connection, with PE contact, 09380062711

Order No.: 42F1972

EAN: 4099889769739

MPN:

09380062711

09 38 006 2711

Series: Han K

Image may differ

Key Specification:

Version socket insert

Shell size 16B

Additional parts equipped

Contact connection screw connection

Pin number 4 pole

Download Datasheet Technical specifications

Unit Price (€ / pc.)

55.5254 € *

Available: 11 pcs.

Leadtime: 1 Week **

Total Price:

55.53 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Contact insert, 09380062711, Harting

Insert, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌80 A, Size: 16 B, Contacts: 4, Conductor cross-section: 1.5 - 16 mm², Copper alloy, Silver plated

Technical specifications

	Version	socket insert
	Additional parts	equipped
	Shell size	16B
	Contact connection	screw connection
	PE contact	Yes
	Pin number	4 pole

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

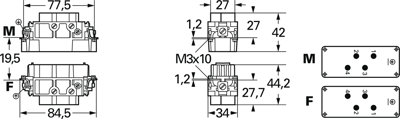

DID – Dimension drawing - EN DID – Dimension drawing

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	RO
Customs tariff number	85366990

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No
Substance description	Lead
