19300161421 | Harting

Name: Grommet housing, size 16B, die-cast aluminum, M25, straight, cross bow locking, IP65/IP66/IP67, 19300161421
Brand: Harting
SKU: 42F291
Price: 11.38 EUR
Availability: OutOfStock

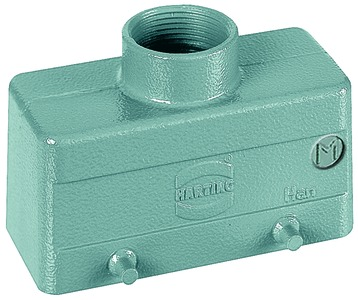

Grommet housing, size 16B, die-cast aluminum, M25, straight, cross bow locking, IP65/IP66/IP67, 19300161421

Order No.: 42F291

EAN: 4099889745641

MPN:

19300161421

19 30 016 1421

Series: Han B

Image may differ

Key Specification:

Version grommet housing

Shell size 16B

Shell Material die-cast aluminum

Cable Outlet M25, straight

Type of locking cross bow locking

Show 13 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

11.3764 € *

Available: 0 pcs.

Leadtime: 9 Weeks **

Add to Cart

Total Price:

11.38 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Hood, 19300161421, HARTING

Hood with double locking lever and top entry, material: aluminium die-cast, powder-coated.

Technical specifications

	Version	grommet housing
	Shell size	16B
	Shell Material	die-cast aluminum
	Cable Outlet	M25, straight
	Degree of protection (IP)	IP65/IP66/IP67
	Type of locking	cross bow locking

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	DE
Customs tariff number	85389099

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
