19300160527 | Harting

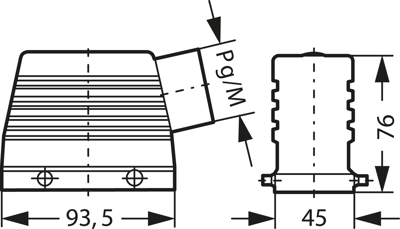

Name: Grommet housing, size 16B, die-cast aluminum, M32, angled, cross bow locking, IP65/IP66/IP67, 19300160527
Brand: Harting
SKU: 42F281
Price: 23.75 EUR
Availability: InStock

Grommet housing, size 16B, die-cast aluminum, M32, angled, cross bow locking, IP65/IP66/IP67, 19300160527

Order No.: 42F281

EAN: 4099889745580

MPN:

19300160527

19 30 016 0527

Series: Han B

Image may differ

Key Specification:

Version grommet housing

Shell size 16B

Shell Material die-cast aluminum

Cable Outlet M32, angled

Type of locking cross bow locking

Show 13 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

23.7524 € *

Available: 1 pcs.

Leadtime: 5 Weeks **

Total Price:

23.75 € *

Price list

Quantity

Price per unit*

1 pcs.

23.7524 €

5 pcs.

22.3244 €

15 pcs.

21.4676 €

50 pcs.

20.5156 €

150 pcs.

19.6588 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Hood, 19300160527, HARTING

Hood with double locking lever and side entry, material: aluminium die-cast, powder-coated.

Technical specifications

	Version	grommet housing
	Shell size	16B
	Shell Material	die-cast aluminum
	Cable Outlet	M32, angled
	Degree of protection (IP)	IP65/IP66/IP67
	Type of locking	cross bow locking

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	DE
Customs tariff number	85389099

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
