09380062701 | Harting

Name: Socket contact insert, 16B, 6 pole, equipped, screw connection, with PE contact, 09380062701
Brand: Harting
SKU: 42F1974
Price: 51.34 EUR
Availability: OutOfStock

Socket contact insert, 16B, 6 pole, equipped, screw connection, with PE contact, 09380062701

Order No.: 42F1974

EAN: 4099889769753

MPN:

09380062701

09 38 006 2701

Series: Han Com

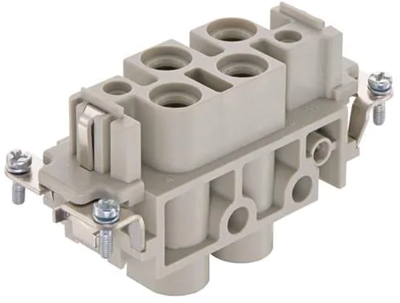

09380062701 Harting Contact Inserts Image 2

Image may differ

Key Specification:

Version socket insert

Shell size 16B

Additional parts equipped

Contact connection screw connection

Pin number 6 pole

Show 21 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

51.3366 € *

Available: 0 pcs.

Leadtime: 15 Weeks **

Add to Cart

Total Price:

51.34 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Contact insert, 09380062701, Harting

Insert, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌80 A, Size: 16 B, Contacts: 6, Conductor cross-section: 1.5 - 16 mm², 0.5 - 2.5 mm², Copper alloy, Silver plated

Technical specifications

	Version	socket insert
	Additional parts	equipped
	Shell size	16B
	Contact connection	screw connection
	PE contact	Yes
	Pin number	6 pole

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

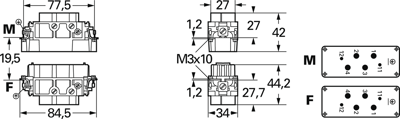

DID – Dimension drawing - EN DID – Dimension drawing

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	RO
Customs tariff number	85366990

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No
Substance description	Lead
