10020946 | Fischer Elektronik

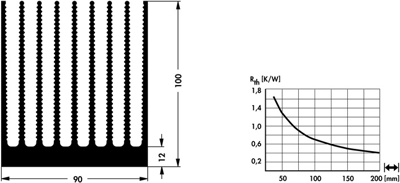

Extruded heatsink, (L x W x H) 100 x 90 x 100 mm, 1.65 to 0.4 K/W, black anodized, 10020946
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
27.5961 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
27.60 € *
Price list
Quantity
Price per unit*
1 pcs.
27.5961 €
2 pcs.
25.8111 €
5 pcs.
24.2522 €
10 pcs.
22.5386 €
*incl. VAT plus shipping costs
Subject to prior sale

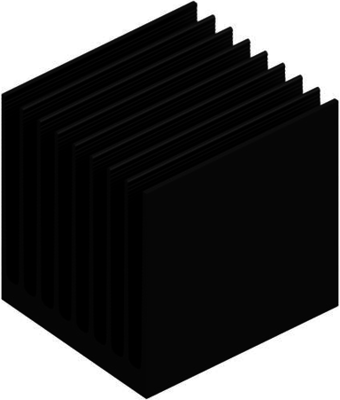

Standard extruded heatsink, 10020946, Fischer Elektronik
Standard extruded heatsink with thermal resistance: 1.65-0.4 K/W, Surface: black anodised.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min. heat resistance | 0.4 K/W | |
| Max. heat resistance | 1.65 K/W | |
| Length | 100 mm | |
| Width | 90 mm | |
| Height | 100 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Surface type | black anodized | |
| Suitable for | SSR-1, SSR-2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
