10020103 | Fischer Elektronik
Extruded heatsink, (L x W x H) 50 x 16 x 16 mm, 14 K/W, black anodized, 10020103
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
4.4387 € *
Available: 4 pcs.
Total Price:
4.44 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4387 €
10 pcs.
4.1174 €
25 pcs.
3.8437 €
50 pcs.
3.4986 €
*incl. VAT plus shipping costs
Subject to prior sale

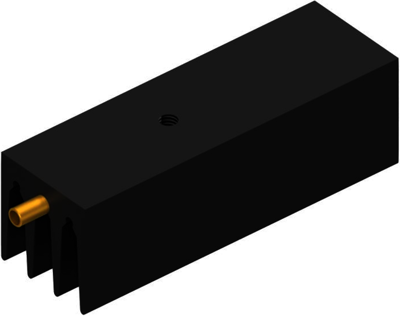

Heatsink with solder pin and M 3 thread, type Fischer SK 437.
For TO-218, TO-220, TO-247, TO-248, made of black anodized aluminum.

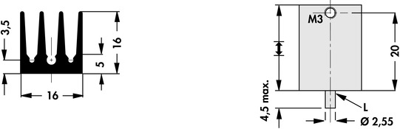

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Max. heat resistance | 14 K/W | |
| Length | 50 mm | |
| Width | 16 mm | |
| Height | 16 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Surface type | black anodized | |
| Suitable for | TO-218, TO-220, TO-247, TO-248 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
