10020095 | Fischer Elektronik
Extruded heatsink, (L x W x H) 30 x 16 x 16 mm, 22 K/W, black anodized, 10020095
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
4.8552 € *
Available: 62 pcs.
Total Price:
4.86 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8552 €
10 pcs.
4.5101 €
25 pcs.
4.2007 €
50 pcs.
3.8199 €
*incl. VAT plus shipping costs
Subject to prior sale

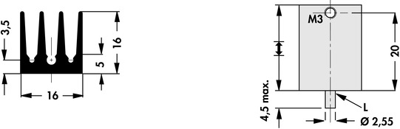

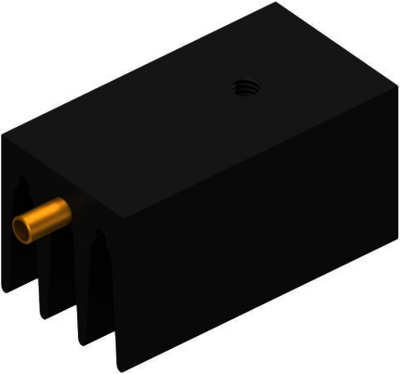

Heatsink with solder pin and M 3 thread, type Fischer SK 437.
For TO-218, TO-220, TO-247, TO-248, made of black anodized aluminum.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Max. heat resistance | 22 K/W | |
| Length | 30 mm | |
| Width | 16 mm | |
| Height | 16 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Surface type | black anodized | |
| Suitable for | TO-218, TO-220, TO-247, TO-248 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 76042990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
