FMMT723TA | Diodes

Bipolar junction transistor, PNP, -1 A, -100 V, SMD, SOT-23, FMMT723TA

Order No.: 33S1047
EAN: 4099879031242
MPN:
FMMT723TA
Series: FMMT
FMMT723TA Diodes Bipolar Transistors

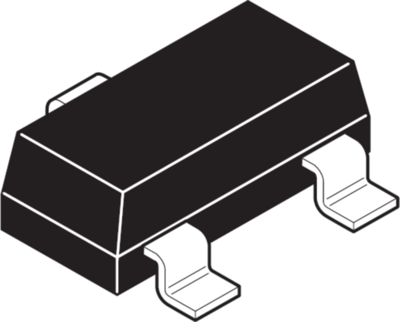

Image may differ
Unit Price (€ / pc.)
0.6188 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
6.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
0.6188 €

PNP transistor, FMMT723TA, DIODES

PNP low saturation transistor in SOT23 case.

Features

  • Halogen and antimony free
  • RoHS Compliant
  • Qualified to AEC-Q101 standards for high reliability

Applications

  • High-side driver
  • Load disconnect switch
  • Motor drive
Technical specifications
Filter Property Value
max. operating temperature 150 °C
max.voltage between collector and base Vcbo -100 V
min. operating temperature -55 °C
Assembly SMD
Min DC gain 250 mA
max.voltage between collector and emitter Vceo -100 V
Collector current -1 A
Saturation voltage -330 mV
Transit frequency fTmin 200 MHz
Version PNP
Enclosure SOT-23
Power dissipation 0.625 W
Logistics
Property Value
Customs tariff number 85412900
Original Packaging Reel with 3,000 pieces
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 6/8/11
