FMMT597TA | Diodes
Bipolar junction transistor, PNP, -200 mA, -300 V, SMD, SOT-23, FMMT597TA
Unit Price (€ / pc.)
0.4760 € *
Standard delivery time from the manufacturer is: 1 Week
PNP transistor, FMMT597TA, DIODES

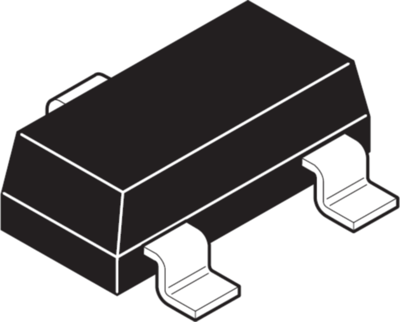

PNP high voltage transistor in SOT23 case.
Features
- Halogen and antimony free
- RoHS Compliant
- Qualified to AEC-Q101 standards for high reliability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power dissipation | 0.5 W | |
| Assembly | SMD | |
| max.voltage between collector and base Vcbo | -300 V | |
| Transit frequency fTmin | 75 MHz | |
| Max DC amplification | 300 mA | |
| max. operating temperature | 150 °C | |
| Version | PNP | |
| Enclosure | SOT-23 | |
| Collector current | -200 mA | |
| Min DC gain | 100 mA | |
| Saturation voltage | -250 mV | |
| min. operating temperature | -55 °C | |
| max.voltage between collector and emitter Vceo | -300 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 3,000 pieces |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
