EF4810 | WÖHRLE
Power supply, 1-phase, 48 to 55 VDC, 10 A (0 to 10 A), 480 W, EF4810
Unit Price (€ / pc.)
153.51 € *
Standard delivery time from the manufacturer is: 8 Weeks

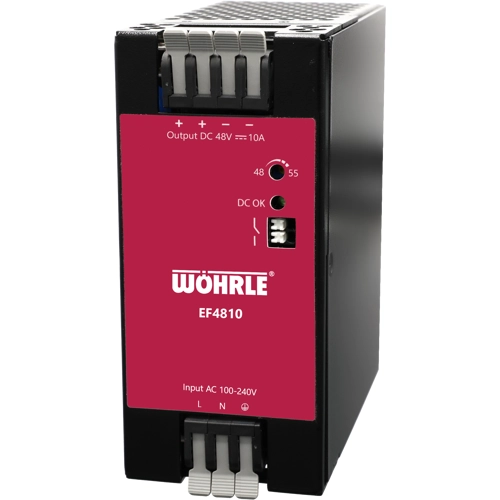

DC power supply, EF4810, WÖHRLE
Single-phase power supply unit with spring-loaded terminals, 48 volts DC, 10 amps, 120% overload capacity
Features
- Ultra-slim design for space-saving installation
- Spring tension clips for quick and secure wiring
- Relay contact for status monitoring
- Constant overload performance of 120 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 1-phase | |
| Output current | 10 A | |
| Range of Output Currence | 0 to 10 A | |
| Output voltage DC | 48 to 55 VDC | |
| Input voltage AC | 90-264 VAC, 127-375 VDC | |
| Power | 480 W | |
| efficiency | 95 % | |
| Width | 56 mm | |
| Height | 123.6 mm | |
| Depth | 116.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
