EF1210 | WÖHRLE
Power supply, 1-phase, 12 to 14 VDC, 10 A (0 to 10 A), 120 W, EF1210
Unit Price (€ / pc.)
83.1810 € *
Standard delivery time from the manufacturer is: 8 Weeks

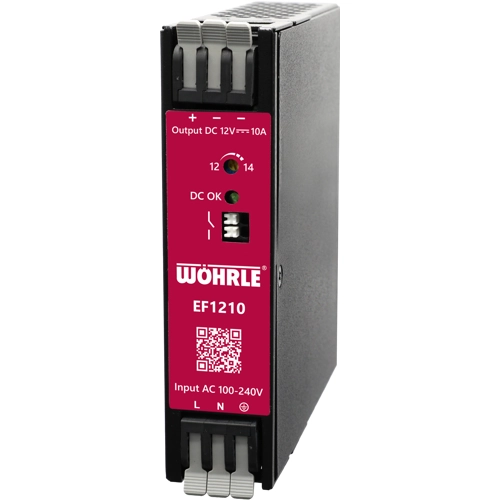

DC power supply, EF1210, WÖHRLE
Single-phase power supply unit with spring-loaded terminals, 12 volts DC, 10 amps, 120% overload capacity
Features
- Ultra-slim design for space-saving installation
- Spring tension clips for quick and secure wiring
- Constant overload performance of 120% for highest reliability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 1-phase | |
| Output current | 10 A | |
| Range of Output Currence | 0 to 10 A | |
| Output voltage DC | 12 to 14 VDC | |
| Input voltage AC | 90-264 VAC, 127-375 VDC | |
| Power | 120 W | |
| efficiency | 93 % | |
| Width | 30 mm | |
| Height | 123.6 mm | |
| Depth | 116.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
