771-5001/165-000 | WAGO

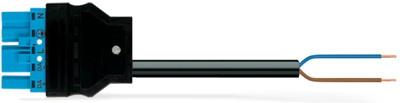

Connection cable, 2 m, plug, 5 pole straight to open end, 1.5 mm², 771-5001/165-000
Connecting line, 771-5001/165-000, WAGO
The WINSTA MIDI Connecting line I coding supports fast, reliable installation. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20.
WINSTA is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It ensures fast, secure and, above all, error-free installation of components and cables. Now you can also reduce installation expenses without compromising safety and quality: with protection type IP20 eliminates the need for servicing and prevents unnecessary downtime.
Features
- Pluggable installation connector with protection against mismating
- With I coding for lighting control (DALI standard)
- Convenient installation and commissioning
| Filter | Property | Value |
|---|---|---|
| Connection (2) | open end | |
| Cable cross-section | 1.5 mm² | |
| Version | connection line | |
| Coding | I | |
| Cable length | 2 m | |
| Connection 1 design | straight | |
| Connection (1) | plug, 5 pole |
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
