721-311/008-000 | WAGO

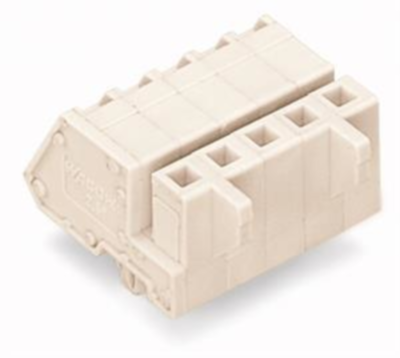

Socket header, 11 pole, pitch 5 mm, angled, light gray, 721-311/008-000
Unit Price (€ / pc.)
6.8544 € *
Standard delivery time from the manufacturer is: On Request
Female header, 721-311/008-000, Wago

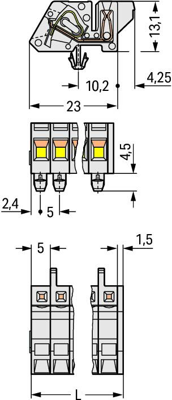

Angled female connector with snap-in lugs 11-pole grid dimension 5 mm / 0.197 in 100 % mismating protected for surface mounting sheet thickness 0.6x1.2 mm fixing holes Ø 3.5 mm light grey
Technical specifications
| Type of locking | No | |
| contact surface | tin-plated | |
| Contact type | socket | |
| Additional parts | equipped | |
| Grid | 5 mm | |
| Pin number | 11 pole | |
| Number of rows | 1 | |
| Rated voltage | 320 V | |
| Connection | spring balancer connection | |
| Rated current | 12 A | |
| Version | socket header | |
| Colour | light gray | |
| Connection plating | tin-plated | |
| Orientation | angled |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
