LM2990T-15/NOPB | Texas Instruments
Voltage regulator, -15 VDC, 1.8 A, negative, TO-220, LM2990T-15/NOPB
Order No.: 41S5972
EAN: 4099879098153
MPN:
LM2990T-15/NOPB
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.9274 € *
Standard delivery time from the manufacturer is: 1 Week

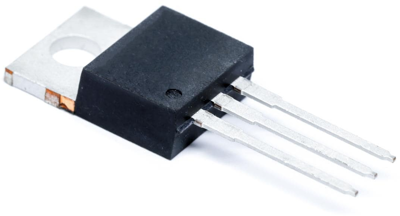

Voltage regulator, LM2990T-15 TO220, TI
The LM2990T-15 TO220 is a three-terminal, low-dropout, 1-A negative voltage regulator. The dropout voltage at 1-A load current is typically 0.6 V and an ensured worst-case maximum of 1 V over the entire operating temperature range. The quiescent current is typically 1 mA with 1-A load current and an input-output voltage differential greater than 3 V. A unique circuit design of the internal bias supply limits the quiescent current to only 9 mA (typical) when the regulator is in the dropout mode (VOUT - VIN ≤ 3 V).
Features
- 5% output accuracy over entire operating range
- Low quiescent current
- Internal short circuit current limit
- Internal thermal shutdown with hysteresis
Applications
- Post switcher regulator
- Local, on-card regulation
- Battery operated equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Enclosure | TO-220 | |
| Version | fixed | |
| Number of Regulators | 1 | |
| Output voltage DC | -15 VDC | |
| Output current | 1.8 A | |
| Polarity | negative | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Original Packaging | Bar with 45 pieces |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
