LM2941CT/NOPB | Texas Instruments

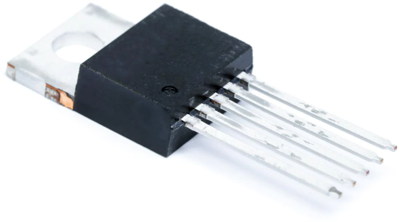

Voltage regulator, 5-20 VDC, 1 A, positive, TO-220, LM2941CT/NOPB
Order No.: 41S5967
EAN: 4099879098139
MPN:
LM2941CT/NOPB
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.666 € *
Standard delivery time from the manufacturer is: 1 Week
Voltage regulator, LM2941CT, TI
The LM2941CT a positive voltage regulator features the ability to source 1 A of output current with a typical dropout voltage of 0.5 V and a maximum of 1 V over the entire temperature range. That is a quiescent current reduction circuit has been included which reduces the ground pin current when the differential between the input voltage and the output voltage exceeds approximately 3 V. The quiescent current with 1 A of output current and an input-output differential of 5 V is therefore only 30 mA. Higher quiescent currents only exist when the regulator is in the dropout mode (VIN - VOUT ≤ 3 V).
Features
- Output current in excess of 1 A
- Trimmed reference voltage
- Reverse battery protection
- Internal short circuit current limit
Applications
- Industrial
- Automotive
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Enclosure | TO-220 | |
| Version | adjustable | |
| Number of Regulators | 1 | |
| Input voltage AC | -15-26 V | |
| Output voltage DC | 5-20 VDC | |
| Output current | 1 A | |
| Polarity | positive | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Original Packaging | Bar with 45 pieces |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
