10007705 | Fischer Elektronik

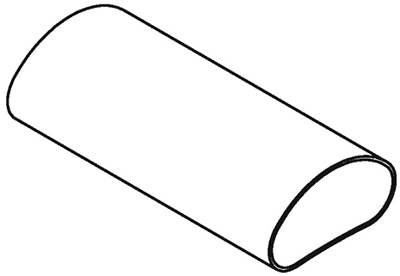

Silicone insulating sleeve
Active
Product by Fischer Elektronik at Bürklin Elektronik
Heat transfer foils as insulation tubing sections for semiconductor packages, type Fischer WSC.
Made of silicon elastomer to UL 94 V-0 Length: 25 mm. Material thickness: 0.3 mm. Material hardness: 75 Shore A. Thermal resistance: 0.4 K/W. Elongation: 100 %. Dielectric strength: 10 kV. Operating temperatures: –60 to +180 °C.
Technical attributes (type, for package type): WSC–220, TO 220
| Thickness | 0.3 mm | |
| Material | silicone | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Thermal conductivity | 1.22 W/mK | |
| Thermal resistense | 0.4 K/W |
| Country of origin | JP |
| Customs tariff number | 85472000 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
