N plug 50 Ω, RG-213/U, Solder/Clamp, straight, 100023990
Active
Product by Telegärtner at Bürklin Elektronik
Coaxial connector, J01020I1070, Telegärtner

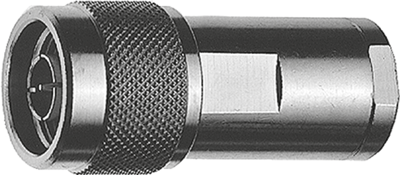

N Straight Plug, RG-213/U, RG-214/U, 9880 Belden, solder/clamp, IP 67
This product is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. It also provides a medium-power high-frequency solution for coax connections.
Technical Data
- Design: Plug
- Connector type: N
- Cable group: RG 213/U
- Connection type: Solder/Clamp
- Angled connector: false
- Impedance: 50 Ω
| Version | plug | |
| Design | straight | |
| Impedance | 50 Ω | |
| Cable Group | RG-213/U | |
| Contact connection | Solder/Clamp | |
| Contact material | brass | |
| Connector | N |
| Country of origin | DE |
| Customs tariff number | 85366910 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
