100023998 | Telegärtner

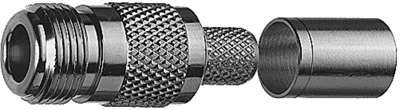

N socket 50 Ω, RG-213/U, crimp connection, straight, 100023998
Unit Price (€ / pc.)
18.0999 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
18.10 € *
Price list
Quantity
Price per unit*
1 pcs.
18.0999 €
10 pcs.
15.9222 €
50 pcs.
14.8393 €
150 pcs.
14.1967 €
500 pcs.
13.4589 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coaxial connector, J01021A0061, Telegärtner
N Straight Jack Crimp, RG-213/U, crimp/crimp
This product is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. It also provides a medium-power high-frequency solution for coax connections.
Technical Data
- Design: Jack
- Connector type: N
- Cable group: RG 213/U
- Connection type: Crimp/Crimp
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Version | socket | |
| Design | straight | |
| Impedance | 50 Ω | |
| Cable Group | RG-213/U | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Connector | N |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
