100023910 | Telegärtner
N plug 50 Ω, UT-250, solder/solder, straight, 100023910
Unit Price (€ / pc.)
13.4470 € *
Available: 0 pcs.
Leadtime: On Request **

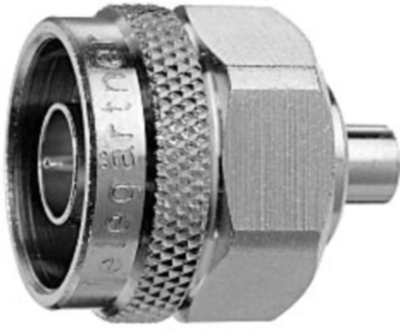

Coaxial connector, J01020A0112, Telegärtner
N Straight Plug G9 (UT-250), OE 5085
This product is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. It also provides a medium-power high-frequency solution for coax connections.
Technical Data
- Design: Plug
- Connector type: N
- Cable group: UT-250
- Connection type: Solder/Solder
- Angled connector: false
- Insulated mounting: false
- Impedance: 50 Ω
Technical specifications
| Version | plug | |
| Design | straight | |
| Impedance | 50 Ω | |
| Cable Group | UT-250 | |
| Contact connection | solder/solder | |
| Contact material | brass | |
| Connector | N |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
