TDK

ATB2012-50011-T000 | TDK

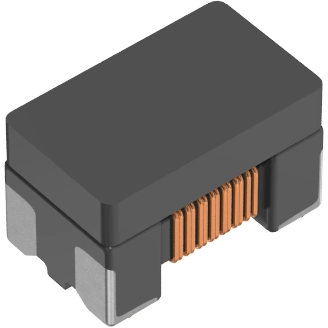

Balun transformer

default S
default L
Total price
(0.25 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
2000 pcs.
0.25 €
*incl. VAT plus shipping costs
Description

Product by TDK at Bürklin Elektronik

Technical specifications
Design SMD
Width 2.5 mm
Height 2.3 mm
Length 3.2 mm
max. frequency 860 MHz
max. operating temperature 85 °C
min. frequency 40 MHz
min. operating temperature -40 °C
Winding ratio 1:1
Show similar products (0)
Logistics
Customs tariff number 85340090
Original Packaging Reel with 2,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item with 5 variations
Item description
Price list
Total
Design
Width
Length
Winding ratio
max. frequency
Height
min. operating temperature
DC resistance
max. operating temperature
min. frequency
Balun transformer
Order No.:
 06N8900
Manufacturer:
 TDK
Manufacturer SKU
 ATB2012-75011-T000
2000 pcs.
0.25 €
0.00 € *
Currently not in stock, we will order for you
SMD
1.2 mm
2 mm
1:1
1200 MHz
1.2 mm
-40 °C
85 °C
50 MHz
Balun transformer
Order No.:
 06N8805
Manufacturer:
 TDK
Manufacturer SKU
 ATB3225-75034CT-T000
1000 pcs.
1.27 €
0.00 € *
Currently not in stock, we will order for you
SMD
2.5 mm
3.2 mm
3:4
100 MHz
2.3 mm
-25 °C
0.7 Ω
85 °C
1 MHz
Balun transformer
Order No.:
 06N8803
Manufacturer:
 TDK
Manufacturer SKU
 ATB3225-75032CT-T001
1000 pcs.
1.27 €
0.00 € *
Currently not in stock, we will order for you
SMD
2.5 mm
3.2 mm
3:2
100 MHz
2.3 mm
-25 °C
0.7 Ω
85 °C
5 MHz
Balun transformer
Order No.:
 06N8899
Manufacturer:
 TDK
Manufacturer SKU
 ATB2012-50011-T000
2000 pcs.
0.25 €
0.00 € *
Currently not in stock, we will order for you
SMD
2.5 mm
3.2 mm
1:1
860 MHz
2.3 mm
-40 °C
85 °C
40 MHz
Balun transformer
Order No.:
 06N8802
Manufacturer:
 TDK
Manufacturer SKU
 ATB3225-75011CT-T001
1000 pcs.
1.27 €
0.00 € *
Currently not in stock, we will order for you
SMD
2.5 mm
3.2 mm
1:1
200 MHz
2.3 mm
-25 °C
0.7 Ω
85 °C
5 MHz
*incl. VAT plus shipping costs
